Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size

  • Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size
  • Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size
  • Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size
Nguồn gốc Hengshui, Trung Quốc
Hàng hiệu QIANPU
Số lượng đặt hàng tối thiểu 1 cuộn
Giá bán Negotiable according to quantity of order
chi tiết đóng gói <i>1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wo
Thời gian giao hàng 2 tuần
Khả năng cung cấp 3000 cuộn mỗi tháng
Thông tin chi tiết sản phẩm
Tên sản phẩm Lưới thép không gỉ Hà Lan Vật liệu thép không gỉ
Số lượng lưới 24 x 110 chiều rộng 1,2m, 1,5m hoặc tùy chỉnh
Chiều dài 30m hoặc tùy chỉnh Kỹ thuật dệt
Màu sắc Bạc sáng Đường kính dây 0,25mm x 0,35mm
Đặc trưng Chống ăn mòn tốt Ứng dụng lọc
Làm nổi bật

Stainless Steel Wire Mesh 24x110

,

Stainless Steel Dutch Wire Mesh 0.25mm

,

Stable Opening Size Wire Mesh
Để lại lời nhắn
Mô tả sản phẩm

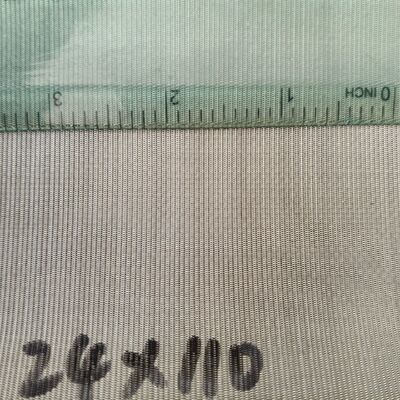

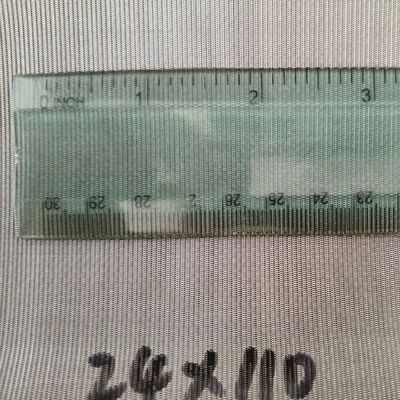

Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size

Product Introduction


24×110 mesh stainless steel wire mesh is a high-precision woven wire cloth, widely used in filtration, screening, separation and industrial protection.


Key Specifications


  • Mesh Count: 24 × 110 mesh
  • Material: SS304 / SS316L (customizable)
  • Weave Type: Dutch weave / Plain weave (as required)
  • Features: High strength, corrosion resistance, uniform opening, good air & liquid permeability
  • Surface: Bright / polished / pickling passivated


Key Advantages


  • Stable opening size ensures consistent filtration accuracy
  • Excellent rust & acid resistance for long service life
  • High tensile strength, not easy to deform under pressure
  • Can be cut, rolled, or made into discs, tubes, filter cartridges


Typical Applications


  • Liquid & oil filtration
  • Plastic extrusion & polymer filtration
  • Food & beverage processing screening
  • Chemical industry filtration
  • Industrial dust control & safety mesh
  •
Woven type Mesh size Wire diameter Opening size
Plain dutch 7X40mesh 0.90X0.71mm 347μm
7X44mesh 0.71X0.63mm 319μm
8X45mesh 0.80X0.60mm 310μm
8X85mesh 0.45X0.315mm 275μm
8.5X60mesh 0.63X0.45mm 296μm
10X76mesh 0.50X0.355mm 248μm
10X90mesh 0.45X0.28mm 275μm
12X64mesh 0.56X0.40mm 210μm
12X86mesh 0.45X0.315mm 211μm
12.5X76mesh 0.45X0.355mm 192μm
14X76mesh 0.45X0.355mm 173μm
14X100mesh 0.40X0.28mm 182μm
14X110mesh 0.355X0.25mm 177μm
16X100mesh 0.40X0.28mm 160μm
16X120mesh 0.28X0.224mm 145μm
17X120mesh 0.355X0.224mm 155μm
20X110mesh 0.355X0.25mm 126μm
20X140mesh 0.315X0.20mm 133μm
20X170 mesh 0.25X0.16mm 130μm
22X120 mesh 0.315X0.224mm 115μm
24X110mesh 0.355X0.25mm 97μm
25X140 mesh 0.28X0.20mm 100μm
28X150mesh 0.28X0.18mm 92μm
30X140 mesh 0.315X0.20mm 77μm
30X150mesh 0.25X0.18mm 82μm
35X170mesh 0.224X0.16mm 69μm
35X190mesh 0.224X0.14mm 74μm
40X200mesh 0.18X0.135mm 63μm
45X250mesh 0.16X0.11mm 56μm
50X250mesh 0.14X0.112mm 53μm
50X270mesh 0.14X0.10mm 50μm
50X300mesh 0.16X0.09mm 55μm
60X270mesh 0.14X0.10mm 39μm
60X300mesh 0.14X0.09mm 41μm
60X500mesh 0.14X0.055mm 51μm
65X390mesh 0.125X0.071mm 42μm
65X750mesh 0.10X0.036mm 36μm
70X340mesh 0.125X0.08mm 35μm
70X350mesh 0.12X0.08mm 35μm
70X390mesh 0.112X0.071mm 　
70X400mesh 0.12X0.07mm 　
70X930mesh 0.10X0.03mm 30μm
77X560mesh 0.14X0.05mm 38μm
80X350mesh 0.10X0.086mm 　
80X400mesh 0.10X0.07mm 40μm
80X430mesh 0.125X0.063mm 32μm
80X600mesh 0.10X0.07mm 40μm
80X700mesh 0.125X0.04mm 40μm
100X600mesh 0.10X0.045mm 　
100X800mesh 0.10X0.035mm 　
100X1200mesh 0.063X0.023mm 23μm
Twill dutch wire mesh 20X150mesh 0.45X0.355mm 101μm
20X200mesh 0.355X0.28mm 118μm
20X270mesh 0.25X0.20mm 119μm
24X300mesh 0.28X0.18mm 110μm
30X270mesh 0.28X0.20mm 77μm
30X340mesh 0.28X0.16mm 89μm
40X430mesh 0.18X0.125mm 63μm
40X540mesh 0.18X0.10mm 70μm
50X500mesh 0.14X0.11mm 47μm
50X600mesh 0.125X0.09mm 51μm
65X600mesh 0.14X0.09mm 36μm
70X600mesh 0.14X0.09mm 31μm
78X680mesh 0.112X0.08mm 29μm
78X760mesh 0.112X0.071mm 　
80X680mesh 0.112X0.08mm 28μm
90X760mesh 0.10X0.071mm 24μm
90X850mesh 0.10X0.063mm 26μm
100X760mesh 0.10X0.071mm 20μm
100X850mesh 0.10X0.063mm 22μm
130X1100 mesh 0.071X0.05mm 17μm
130X1200mesh 0.071X0.045mm 18μm
130X1500mesh 0.063X0.036mm 21μm
150X1400mesh 0.063X0.04mm 15μm
160X1500mesh 0.063X0.036mm 　
165X1400mesh 0.063X0.04mm 　
165X1500mesh 0.063X0.036mm 14μm
174X1400mesh 0.063X0.04mm 11μm
174X1700mesh 0.063X0.032mm 13μm
203X1500 mesh 0.056X0.036mm 9μm
203X1600mesh 0.05X0.032mm 10μm
216X1800mesh 0.045X0.03mm 　
250X1600 mesh 0.05X0.032mm 　
250X1900mesh 0.04X0.028mm 8μm
285X2100mesh 0.05X0.032mm 　
300X2100mesh 0.036X0.025mm 6μm
317X2100mesh 0.036X0.025mm 5μm
325X2300mesh 0.036X0.024mm 4μm
363X2300mesh 0.032X0.022mm 　
400X2700mesh 0.028X0.02mm 　
500X3500mesh 0.025X0.015mm 3μm







Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size 0



Delivery Time
We always prepare enough stock material for your urgent requirement, the delivery time is 7 days for all the stock material. We'll check with our production department for the non-stock items to offer you the exact delivery time and producing schedule.

Mutual Benefit
If the products of our distributors are unmarketable due to the influence by market factors,we will seek customers in the same market or near market who are in need of the products to help the distributors to handle unsalable products.







Anping Qianpu Wire Mesh Products Co., Ltd.is a manufacture and exporter of stainless steel wire mesh product.

We are located in wire mesh industrial base Anping city,Hebei province in China.

Our product range is as below,

Stainless steel woven wire mesh

Welded wire mesh

Crimped wire mesh

Hexagonal wire mesh

Knitted wire mesh

Wire mesh filter

Window screen



Stainless Steel Wire Mesh – 24×110 Mesh 0.25mm X 0.35mm Wire Stable Opening Size 1



It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
