Nguồn gốc An Bình của Trung Quốc
Hàng hiệu QIANPU
Chứng nhận ISO
Số lượng đặt hàng tối thiểu 50 cuộn
chi tiết đóng gói Bên trong có ống giấy, bên ngoài có màng nhựa hoặc giấy chống thấm, sau đó đựng trong hộp gỗ hoặc pa
Thời gian giao hàng 20 ngày
Điều khoản thanh toán T/T, Western Union, L/C
Thông tin chi tiết sản phẩm
Tên sản phẩm ss lưới dây hàn Vật liệu SS304 hoặc SS316
Hình dạng lỗ Lỗ vuông hoặc lỗ khe Kích thước cuộn 36"×100ft, 48"×100ft, v.v.
Kích thước bảng điều khiển 3ft×6ft, 4ft×8ft, 5ft×10ft, 1m×2m, 1,2m×2,4m, 1,5m×3m, 2m×4m Màu sắc Bạc sáng
Làm nổi bật

stainless steel welded wire mesh

,

welded wire mesh fencing

,

welded wire mesh panels
Để lại lời nhắn
Mô tả sản phẩm

High-quality low-carbon steel wire, galvanized steel wire or stainless steel wire is adopted as the raw material, which is welded and formed by automatic precision electric welding equipment. It has firm welding points, flat mesh surface and uniform structure, and has multiple functions such as protection, isolation and load-bearing. It is widely used in construction, agriculture, industry, municipal administration, breeding and other fields, with outstanding cost performance. It can be customized according to customer needs to adapt to different scenarios.



Specifications:

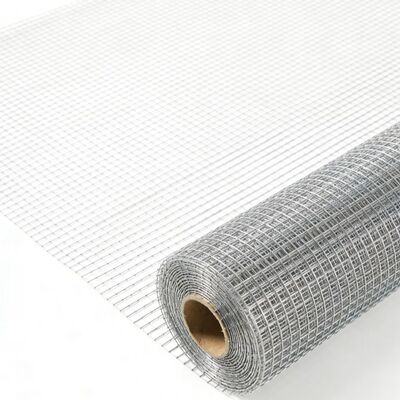

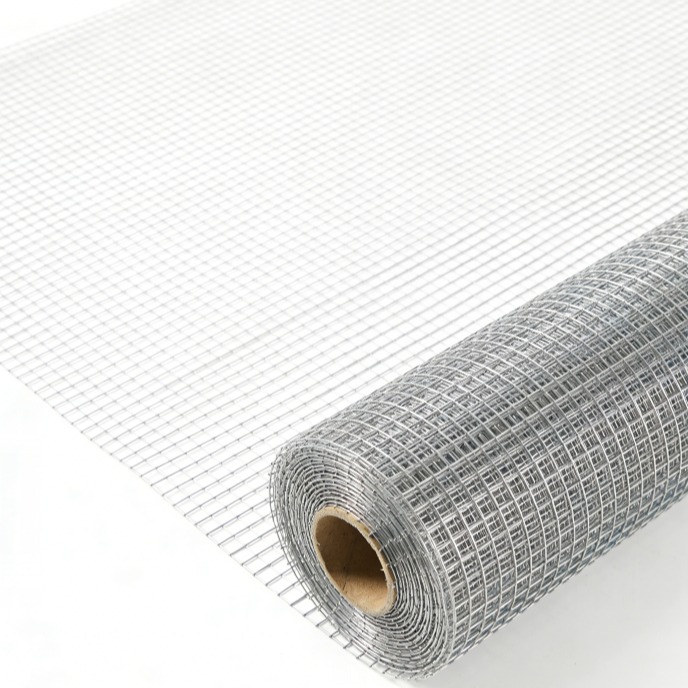

Stainless Steel Welded Wire Mesh in Rolls
Mesh Size Wire Diameter
mm inch BWG gauge mm
6.4 1/4 24–22 0.56–0.71
9.5 3/8 23–19 0.64–1.07
12.7 1/2 22–16 0.71–1.65
19.1 3/4 21–16 0.81–1.65
25.4 × 12.7 1 × 1/2 21–16 0.81–1.65
25.4 1 21–14 0.81–2.11
38.1 1-1/2 19–14 1.07–2.11
25.4 × 50.8 1 × 2 17–14 1.47–2.11
50.8 2 16–12 1.65–2.77

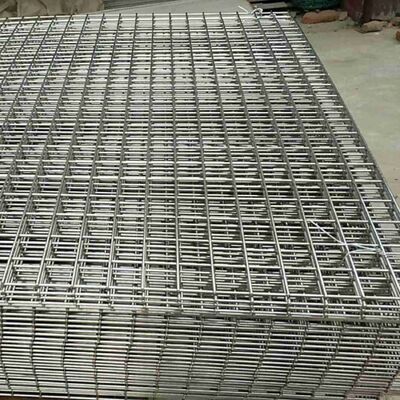

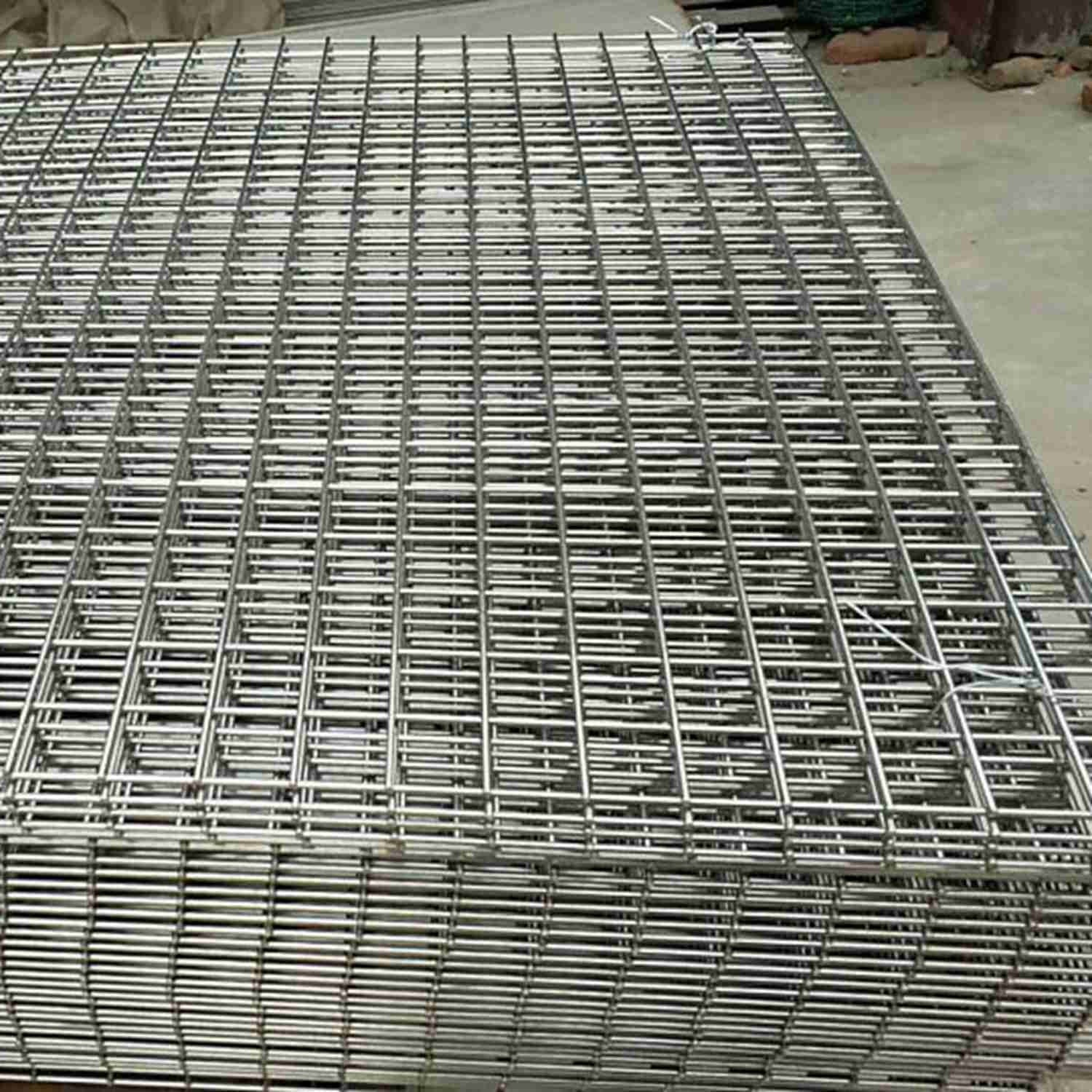

Stainless Steel Welded Mesh Panels
Mesh Size Wire Diameter Panel Width & Length
12.7 mm 1/2" × 1/2" 1.0–2.0 mm



3 feet × 6 feet

4 feet × 8 feet

5 feet × 10 feet

1 m × 2 m

1.5 m × 3 m

2 m × 4 m
25.4 mm 1" × 1" 1.5–3.5 mm
38.1 mm 1-1/2" × 1-1/2" 2.0–5.0 mm
50.8 mm 2" × 2" 2.0–6.0 mm
76.2 mm 3" × 3" 3.0–7.0 mm
101.6 mm 4" × 4" 3.0–8.0 mm
127 mm 5" × 5" 4.0–9.0 mm
152.4 mm 6" × 6" 4.0–10.0 mm
Other panel sizes can also be made according to request.



Material:

Stainless Steel 304 and 316.



Features:

Environmentally friendly;

Elegant appearance;

Strong structure;

Easy to clean;

Non-toxic;

Excellent corrosion resistance, acid and alkali resistance, high temperature resistance, harsh chemicals resistanc.



Main Application Scenarios:

Construction: Used for thermal insulation, plastering mesh (to prevent cracking), floor slab reinforcement, underfloor heating, and foundation pit protection. An indispensable auxiliary material complying with industry standards.

Agriculture: Fences for farmland, vegetable gardens, orchards (bird/animal protection), and breeding houses (chicken coops, duck coops, pig pens). Mesh sizes can be customized for different livestock.

Industry: Equipment protection, workshop/warehouse division, and mechanical safety barriers. Effectively separates areas, protecting personnel and equipment in factories and workshops.

Municipal & Civil: Community fences, park protection, road isolation, manhole cover guards, balcony railings, and window grilles. Combines protection and aesthetics for urban construction.

Other Uses: Art decoration, crafts, filtration (small mesh sizes), and temporary protection (bare wire).

Welded Wire Mesh 0



Packing:

in waterproof paper and film, then in pallets. Custom packing available at request.



Welded Wire Mesh 1Welded Wire Mesh 2
