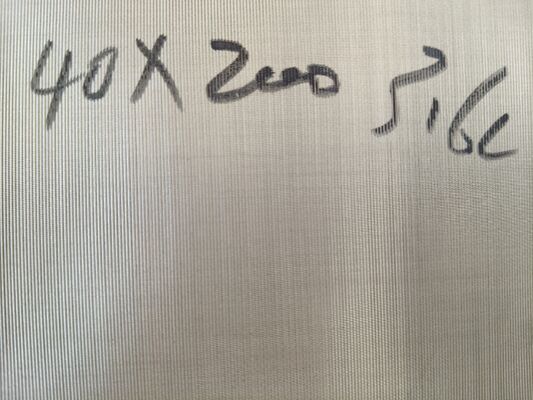

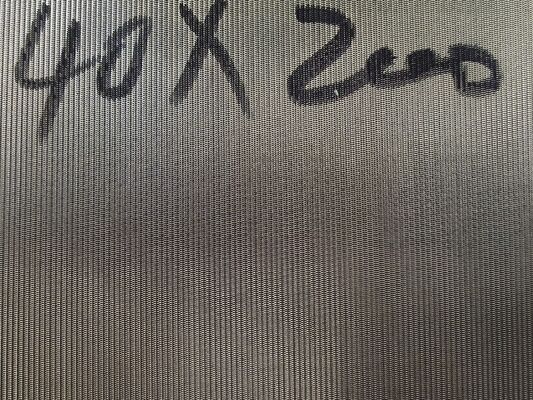

40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration

  • 40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration
  • 40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration
Nguồn gốc Hengshui, Trung Quốc
Hàng hiệu QIANPU
Số lượng đặt hàng tối thiểu 1 cuộn
Giá bán Negotiable according to quantity of order
chi tiết đóng gói <i>1. inside use carton pipe for support+wire mesh layer+water proof paper 2. outside use plastic wo
Thời gian giao hàng 2 tuần
Khả năng cung cấp 3000 cuộn mỗi tháng
Thông tin chi tiết sản phẩm
Tên sản phẩm Lưới thép không gỉ Hà Lan Vật liệu Thép không gỉ 316L
Số lượng lưới 40 x 200 Chiều rộng 1,2m, 1,5m hoặc tùy chỉnh
Chiều dài 30m hoặc tùy chỉnh Kỹ thuật dệt
Màu sắc Bạc sáng Đặc trưng Lưới có thể được làm sạch bằng cách rửa ngược hoặc làm sạch siêu âm, kéo dài đáng kể tuổi thọ sử dụn
Ứng dụng Hóa chất & Hóa dầu: Thu hồi chất xúc tác, lọc dung môi, xử lý polymer Nguồn gốc Trung Quốc
Làm nổi bật

SS316L Dutch weave wire mesh

,

Stainless steel precision filter mesh

,

40x200 mesh gas filtration screen
Để lại lời nhắn
Mô tả sản phẩm

40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration



Product Introduction



This 40×200 mesh SS316L Dutch Weave Wire Mesh is a precision-engineered filter media designed for high-efficiency solid-liquid separation. Using the classic Dutch weave structure, it combines high mechanical strength with micron-level filtration accuracy, making it ideal for critical industrial applications.



Product Specifications



Parameter Details
Material SS316L (Low Carbon Stainless Steel)
Weave Type Dutch Twill Weave / Dutch Weave
Mesh Count 40×200 mesh (warp × weft)
Filtration Rating 5–10 μm
Typical Width 1000mm / 1200mm / Custom
Roll Length 30m / 50m / Custom
Features Corrosion-resistant, high strength, cleanable & reusable




Product Features



Precision Filtration: The dense weft structure delivers consistent micron-level filtration, preventing fine particle bypass.
Superior Corrosion Resistance: SS316L material offers excellent resistance to acids, alkalis, chlorides, and seawater, suitable for harsh environments.
High Pressure Resistance: Robust warp wires and dense weave structure withstand high differential pressures without deformation.
Reusable & Cost-Effective: The mesh can be cleaned by backwashing or ultrasonic cleaning, significantly extending service life.
Full Compliance: Suitable for food-grade, pharmaceutical, and chemical industry requirements.



Application



Food & Beverage: Syrup clarification, edible oil filtration, beer/wine processing
Chemical & Petrochemical: Catalyst recovery, solvent filtration, polymer processing
Pharmaceutical: Liquid medicine filtration, sterile air purification
Water Treatment: Seawater desalination, reverse osmosis pre-filtration
Industrial Filtration: Hydraulic oil purification, gas separation, filter cartridges/sleeves



Our Service:



Custom cutting & slitting to your required size
OEM/ODM support for filter elements and assemblies
Fast delivery & competitive factory pricing
Free samples available for testing



Key words



40x200 mesh dutch weave wire mesh, SS316L filter mesh, stainless steel dutch weave screen, precision liquid filter mesh, 5-10 micron filter screen, food grade stainless steel wire mesh, 316L dutch twill weave mesh, industrial filter wire mesh



Mesh Counts Wire Diameter Aperture Size Weight Thickness
warp×weft warp×weft (μm) (kg/㎡) (mm)
(Mesh/Inch) (mm)
12×64 0.56×0.4 211 3.89 1.36
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.2 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.6 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.7 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.6 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135
130×1100 0.071×0.05 17 9.4 0.171
130×1200 0.071×0.045 18 12 0.161
130×1500 0.063×0.036 21 18.6 0.135
150×1400 0.063×0.04 15 11.4 0.143
160×1500 0.063×0.036 15 12.4 0.135
165×1500 0.063×0.036 14 11.4 0.135
174×1400 0.063×0.04 11 7.4 0.143
174×1700 0.063×0.032 13 12.9 0.127
203×1600 0.05×0.032 10 9.3 0.114
216×1800 0.045×0.03 - 9 0.105
250×1600 0.05×0.032 - 4 -
250×1900 0.04×0.028 8 8 -
285×2100 0.036×0.025 7 7.2 -
300×2100 0.036×0.025 6 6 -
317×2100 0.036×0.025 5 5 -
325×2300 0.036×0.024 4 4 -
Note: Absolute filter values above should be taken as just rough estimations.



40×200 Mesh SS316L Dutch Weave Wire Mesh | Precision Filter Mesh for Liquid & Gas Filtration 0

It have been 15 years that we manufacture and export wire mesh product,our professional responsible attitude and our strictly management technique ensure us standing in the leading position of wire mesh industry.We welcome your enquiry.



In order to make an offer,please provide us below wire mesh specification information.

Material

Wire diameter

Mesh size

Wire mesh length

Wire mesh width

If it is possible,please also provide us weight per roll that you required.
